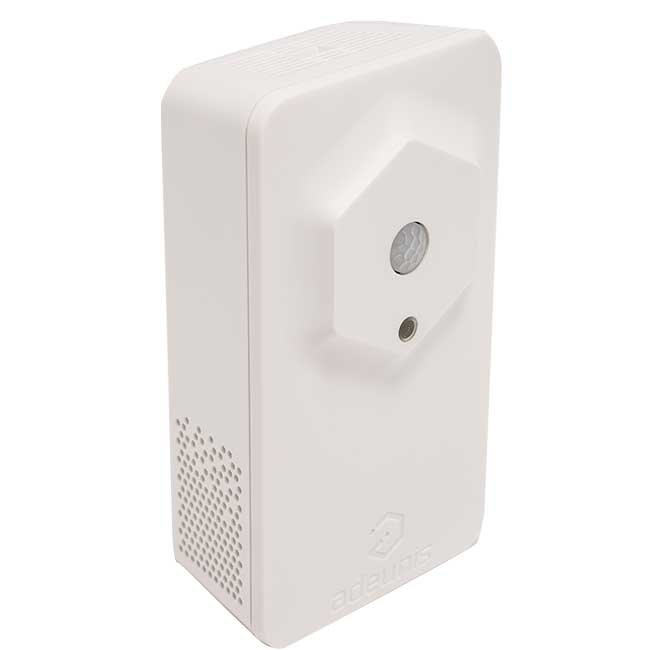

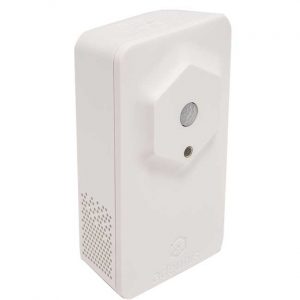

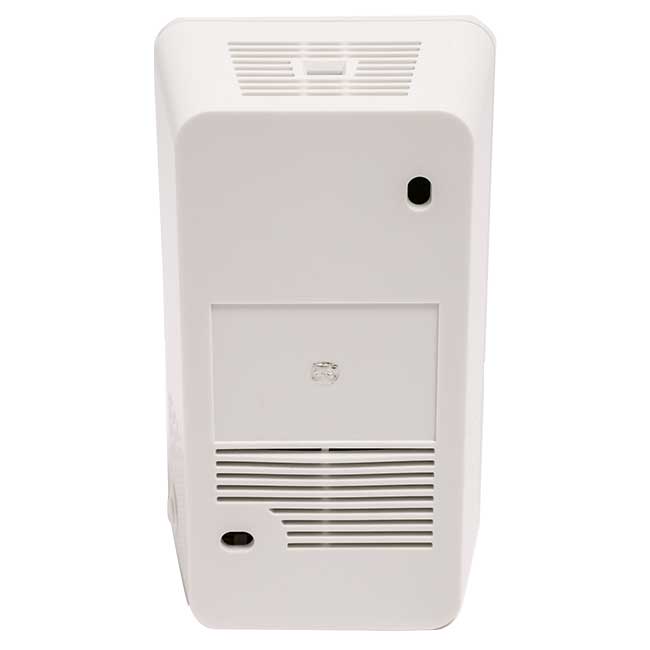

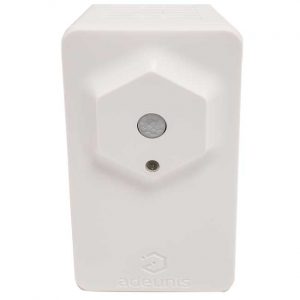

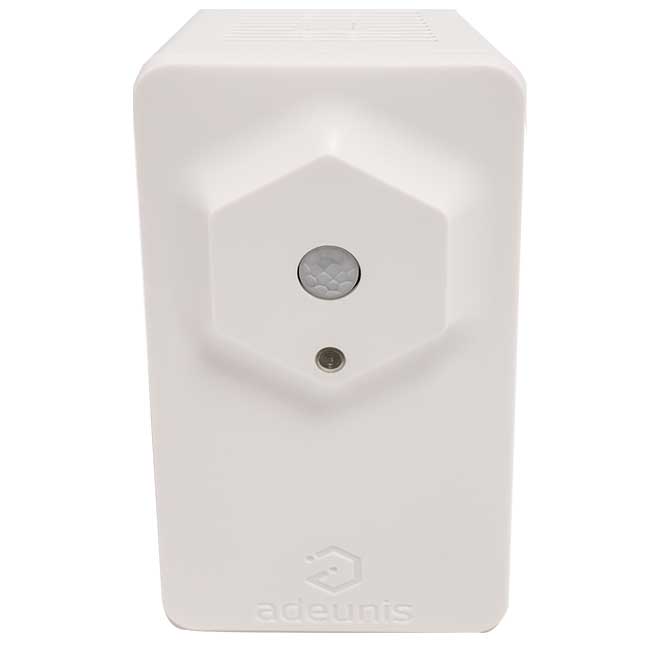

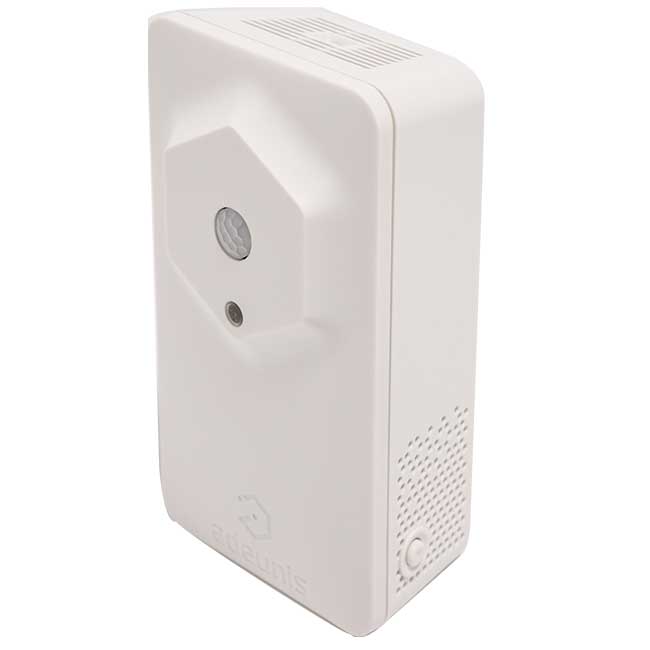

Motion: presence / brightness

Motion: presence / brightness

Optimize the comfort of occupants and the energy consumption of a building

Highlights OF THE IOT SENSOR

  • 4 functions: presence, luminosity, alert button, dry contact input
  • A design for a product adaptable to any type of environment
  • Local and remote configuration
  • Data logging to optimize the number of mailings
  • Battery-powered stand-alone product
  • Compatible with KARE and KARE+

Example of use case with the MOTION

DISCOVER!

The MOTION IoT sensor is part of the IAMo solution.

A complete offer dedicated to the monitoring and analysis of Indoor Air Quality, comfort and ventilation in your buildings

FEATURES OF THE MOTION SENSOR

Description

What actions are performed by the IoT sensor?

Alert

Trigger an alarm if:

  • Exceeded threshold(s)
  • Detection of:
    • attendance
    • non-attendance
  • Press on alert button
  • Event on the dry contact input

Measure

Monitor:

  • the occupancy rate of a room
  • the brightness rate

Count the number of events on the alert button or the dry contact input

What are the technical characteristics of the connected sensor?

Features

  • Periodic and / or event mode
  • Interchangeable battery
  • Dimensions: 111 x 61 x 40 mm
  • Case: IP20 (indoor use)
  • Integrated fixing system: wall or laid
  • Zone:
    • Sigfox RC1
    • LoRaWAN® EU863-870
  • Operating Temperature Range: -20°C /+60°C
  • Local and remote configuration
  • Weight: 102g
  • Standard: Directive 2014/53/UE (RED)
  • Product error alert, configuration error, low battery
  • Configurable life frame
  • 1 digital input
  • 1 connected button

Subscription

  • orange-iot-business-service
  • sigfox iot logo

Technologies

  • lora lora alliance iot
  • Sigfox-Partner-reseaux-iot

Decoding

What are the part numbers of the sensor?

  • ARF8276A MOTION LoRaWAN® EU863-870
  • ARF8276C MOTION Sigfox RC1
  • ARF8276E MOTION Wireless M-Bus 868 (Submitted to MOQ)

To go further, all documents and tools related to the MOTION IoT sensor

Previous versions: to find all the documentation related to previous versions of this product, click here.
