Water leak spot: fluid detection
Previous image
Next image

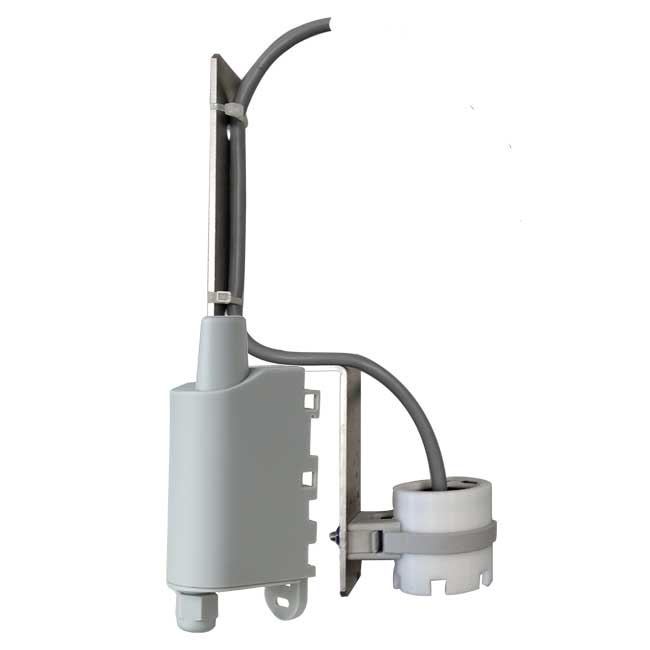

Water leak spot: fluid detection
Detect a water leak at a specific location
Highlights of the IoT sensor
- Event alert
- Optimized radio performance
- Ready to use solution
- Battery-powered stand-alone product
- Compatible with KARE© services
Example of use case with the sensor
SERVICES RELATED TO THE PRODUCT
FEATURES OF THE IoT SENSOR
Description
What actions are performed by the IoT sensor?
Alert
- Raise an alert if water is present
- Warn of return to normal
What are the technical characteristics of the connected sensor?
Features
- Event mode
- 1 meter of cable
- Operating temperature range: -25°C to + 70°C
- Replaceable battery
- Dimensions: 105 x 50 x 27 mm
- Casing: IP67
- Integrated fastening system: DIN rail, tube, wall, collar
- Zone:
- Sigfox: RC1
- LoRaWAN®: EU863-870
- Standards: Directive 2014/53 / EU (RED)
Subscription
Technologies
What are the part numbers of the sensor?
- ARF8170BA-B04 WATERLEAK SPOT LoRaWAN® EU863-870
- ARF8171BA-B04 WATERLEAK SPOT Sigfox RC1
To go further, all documents and tools related to the WATER LEAK SPOT:
Previous versions: to find all the documentation related to previous versions of this product, click here.
