IoT sensor for connected pulse counters

NB-IoT / LTE-M

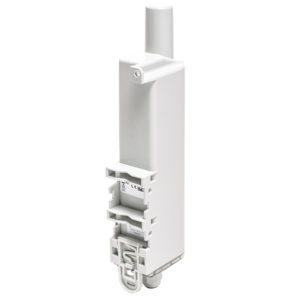

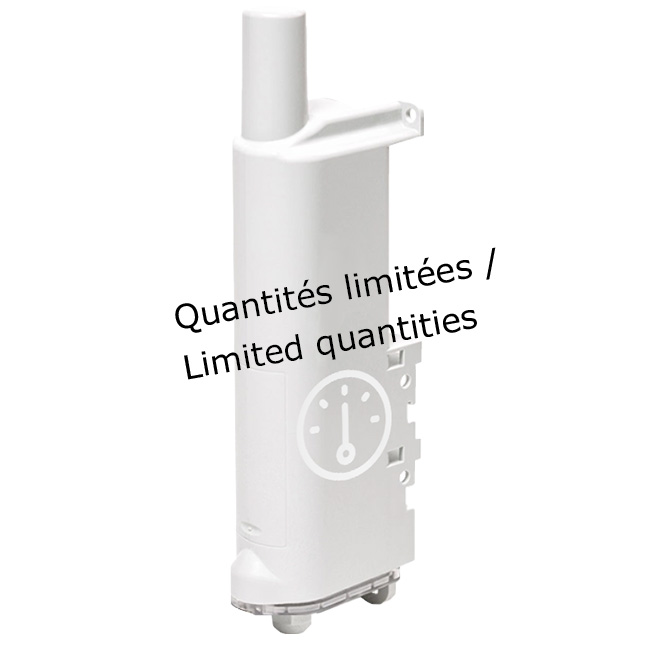

IoT sensor for connected pulse counters

PULSE

Make all your meters communicating

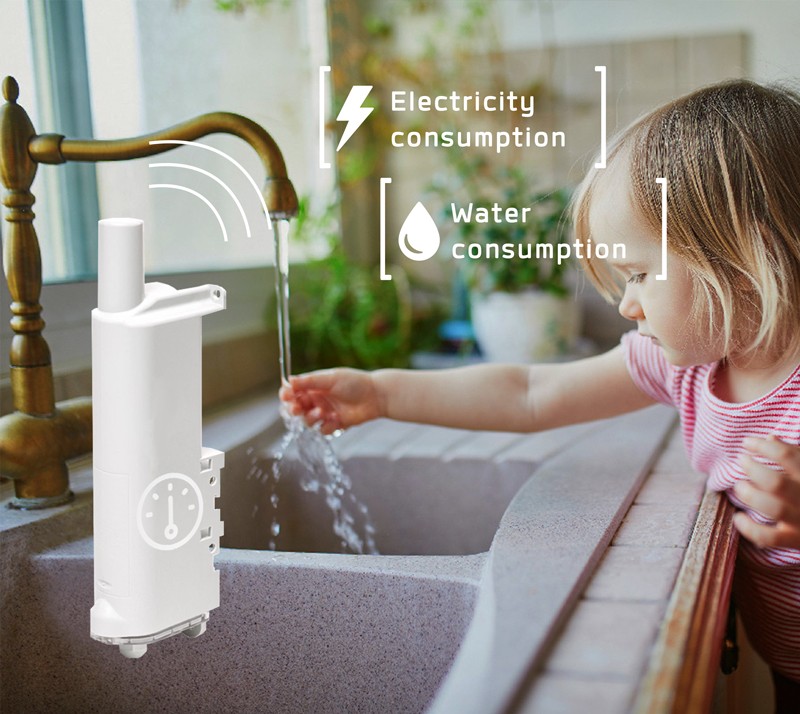

This sensor, which can be configured on NB-IoT or LTE-Cat-M1 networks, enables you to read and analyse consumption data from your water or electricity meters to help you save energy.

It can also be used to count the number of cycles of a piece of equipment, so you can plan its maintenance in advance.

This wireless sensor is designed for easy connection to electricity, water or heat meters, or any other equipment with a pulse output.

HIGHLIGHTS OF THE CELLULAR IOT SENSOR

Designed and manufactured in France
Worldwide cellular compatibility
Multi-platform integration using LwM2M and MQTTS standards
Up to 15 years of autonomy with standard configuration
2 configurable pulse inputs to connect 1 or 2 meters or equipment with pulse output (dry contact, REED, S0 relay or open collector).
Configuration via NFC
This IoT sensor is available in LoRaWAN and Sigfox versions.

SERVICES RELATED TO THE PRODUCT

CHARACTERISTICS OF THE IOT PULSE SENSOR

DEPLOY SIMPLY AND QUICKLY

Choice of connectivity on NB-IoT or LTE-M networks.
Excellent in-building penetration.
On-site application parameterisation using NFC.
Automated provisioning on the IoT platform by bootstrapping (LwM2M).

MEASURE AND ALERT AS NEEDED

Read water, electricity, heat meters: periodic transmission of the index:
- programmable index acquisition time,
- configurable transmission frequency.

Detect flow direction for water meters: count volume consumed in 2 directions.
Count the number of cycles of a piece of equipment.
Trigger alarms on configurable thresholds.
Choose your transmission modes: periodic, event-driven, etc.

OPERATE YOUR FLEET OVER THE LONG TERM WITH THE LWM2M

Standardized and remote device management operations, individually or in batches: commands, configuration read/write, FOTA.

Description of nb-iot / lte-m sensor

What actions does the PULSE sensor perform?

Alert

Monitor leaks

MONITOR

Read back water and electricity meter readings, etc.
Monitor excess consumption of fluids (water, electricity meters).

What are the features of the connected sensor?

General characteristics

Dimensions: 200 x 63,5 x 34 mm
Weight: 163g
Enclosure: IP68
Integrated mounting system: DIN rail, tube, wall, clamp
Powered by 1 dual 8000 mAh battery pack
Operating temperature: -25°C / +70°C

Technical features

Periodic and/or event-driven data transmission
Optimised autonomy thanks to logging (local storage of 48 values per pulse input)
Error/fault management: configuration error, low battery
Local data export via NFC

Compatibility with the LwM2M 1.1 standard (over UDP)

Data formats: SENML_JSON, TLV, CBOR, SENML_CBOR
Bootstrap support
Secure sensor/server communication via DTLS using PSK (Pre-Shared Keys)
Remote update of application firmware and modem firmware (FOTA)

Configuration

Mobile/tablet application for configuring network, server and application parameters via an NFC interface
Remote configuration via an LwM2M server

Connectivity

Carte SIM: Nano SIM 4FF | Class C (1.8V)
Cellulaire standard: 3GPP LTE Version 13

Cellular IoT networks: NB-IoT, LTE-Cat-M1

Certifications

Directive 2014/53/UE (RED)
US: FCC- Title 47 CFR Part 15
Canada: RSS-247 Issue 2
AS/NZS 4268

Sensor part number

ARF8420AAA PULSE NB-IOT/LTE-M1

Discover our packages for the PULSE, an IoT sensor for remote meter reading

Our packaged offers provide you with the tools and support you need to help you implement your IoT projects on NB-IoT and LTE-M networks.

NB-IoT / LTE/M sensors

Get ready to digitalise your building

Unpack your IoT device, made in France.
Benefit from our standard pre-configuration of application parameters to optimize product autonomy.
Log on to our website to discover our technical documentation, designed to simplify your park’s configuration, integration, and operation.
Download our mobile installation and configuration App and considerably reduce your technicians’ training time.
Benefit from the expertise of our technical support team, who will answer all your questions via our HelpDesk interface.

Advanced

Speed up your IoT deployment

NB-IoT / LTE-M sensors

Select your SIM card, we will install it in the device for you.
Benefit from customized pre-configuration of the device’s network, server, and application parameters, carried out by our experts.

Zen

Reduce your deployment, integration, and operating costs

Configured sensor + Connectivity + Device management platform

All the benefits of the Standard offer, plus:
We take care of connectivity provider selection and SIM card integration. We have managed connectivity for 5 years.
We provision your sensor on a device management platform. You benefit from a 5-year subscription in SaaS mode.

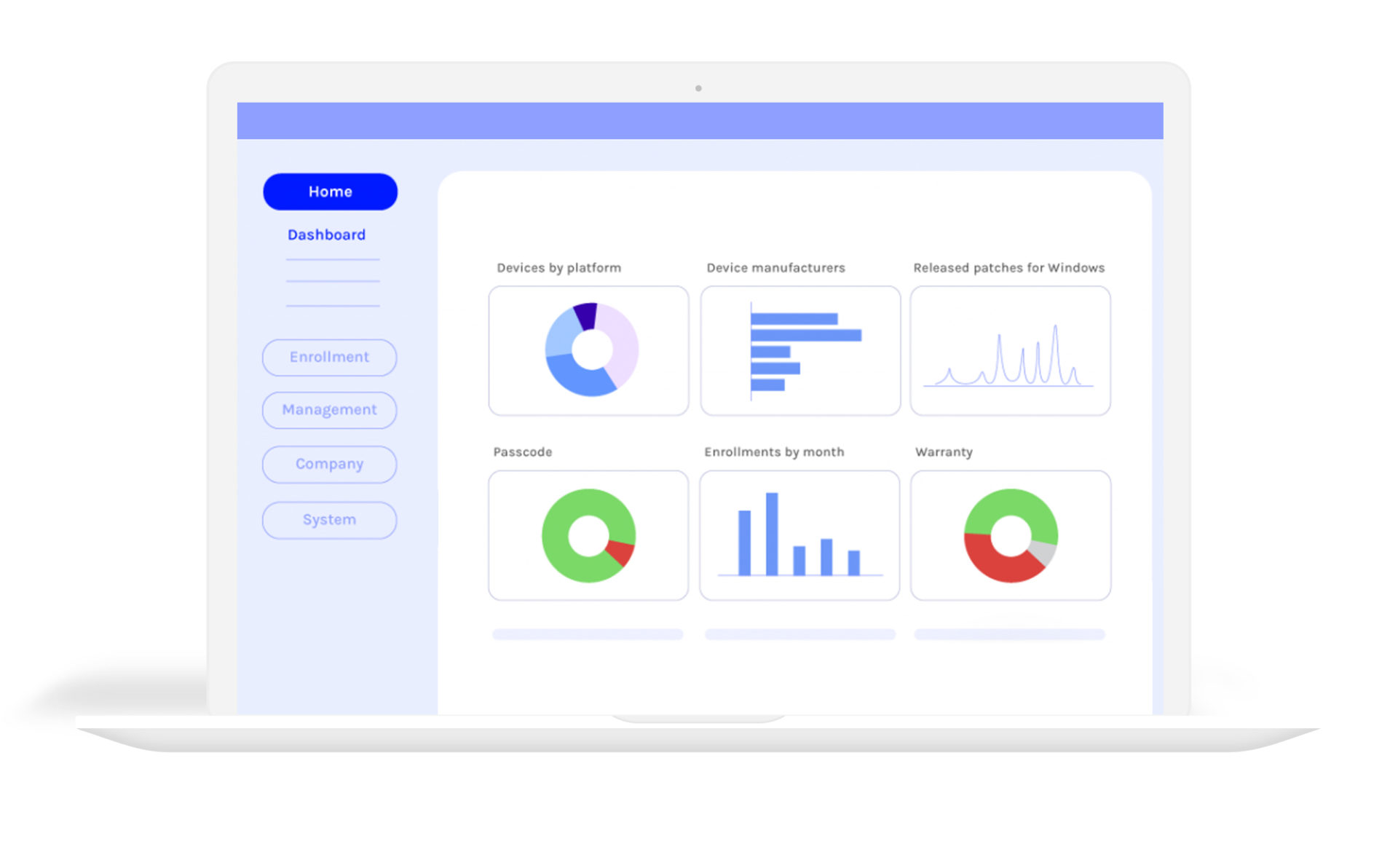

Set up a dashboard in a few clicks to monitor your fleet and gain efficiency and responsiveness.
Our experts are at your side! We offer training modules to help you get to grips with the solution, and access to our radio mapping tool (optional).

For further information, all the documents and useful tools relating to the PULSE sensor:

User Guide PULSE NB-IoT LTE-M1_LWM2M

User Guide PULSE NB-IoT LTE-M1_MQTTS

Installation guide NB-IoT LTE-M – IP68

Release note | PULSE APP FW 1.4.X | NB-IoT / LTE-M

Google Play Store : IoT Configurator NB-IoT/LTE-M

App Store : IoT Configurator NB-IoT/LTE-M

Custom object PULSE

Previous versions: to find all the documentation related to previous versions of this product, click here.
