ATEX Binder connector: pulse meter

ATEX Binder connector: pulse meter

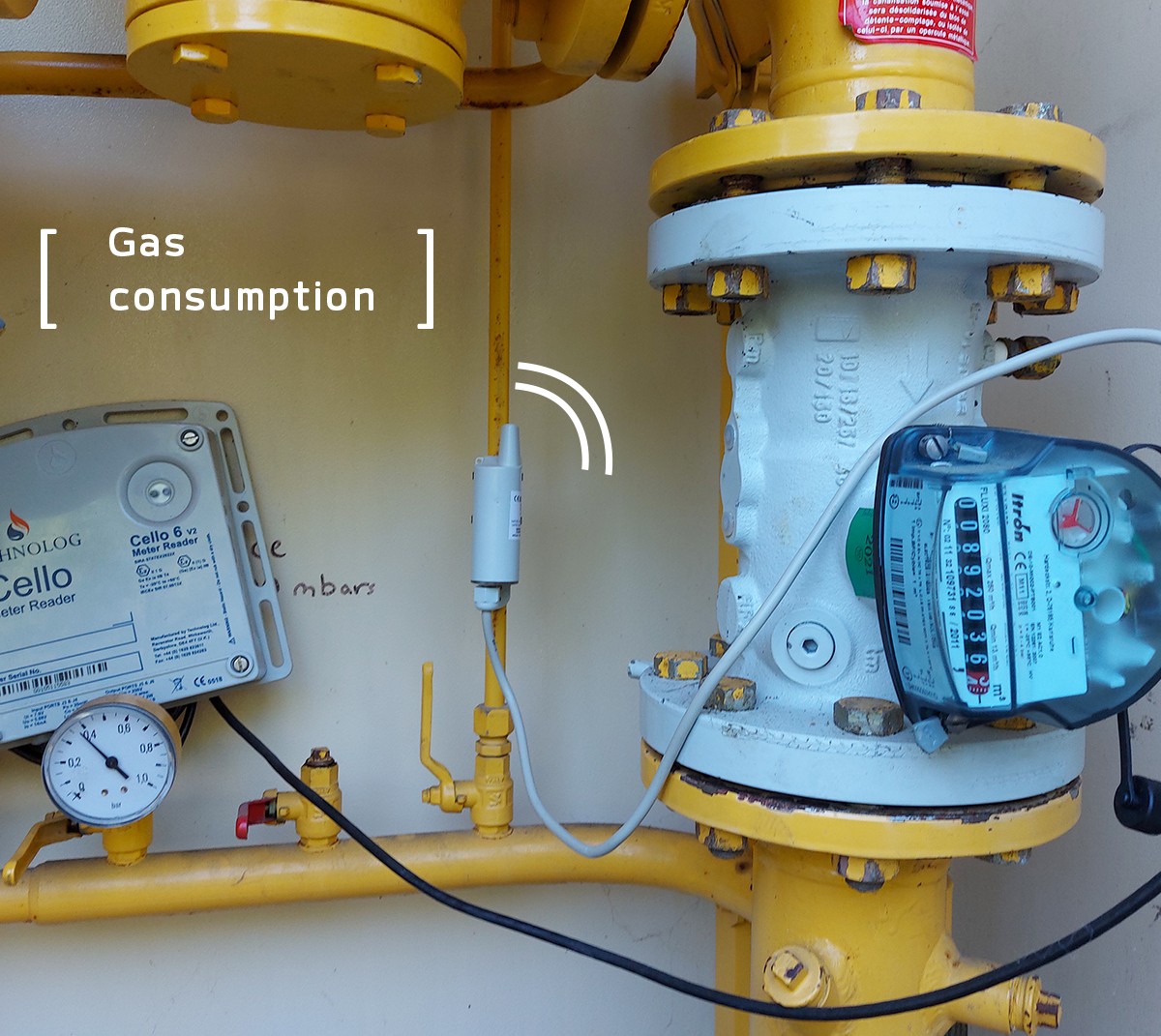

Make your gas meters in ATEX zones communicate

Thanks to its pre-wired Binder connector, this IoT sensor reads the consumption data from your gas meters to help you save energy.

It consists of an ATEX PULSE IoT sensor combined with a Binder connector.

Highlights OF THE IOT SENSOR

The solution is already wired to a Binder connector
Self-powered Emission on alert or periodic mode
Detection of fraud and leaks
Flow monitoring
Locally and remotely configurable
Data logging for optimal autonomy
Redundancy for better service continuity
Timestamp (LoRaWAN®)
Network test at startup (LoRaWAN®)
Available versions:
- PULSE ATEX
- with a Gazpar connector

ATEX zone

Gas & vapour:
- Zone 1: immediate proximity to the sensitive area
- Group IIC: hydrogen gases and vapours, acetylene, etc.
Dust:
- Zone 21: immediate proximity to the sensitive area

SERVICES RELATED TO THE PRODUCT

CHARACTERISTICS OF THE IOT ATEX SENSOR

What does the connected sensor do?

monitor

Periodically check gas meter readings:
- index transmission,
- flow monitoring (min/max)

Alerte

AND/OR Trigger an alarm when:

when the flow rate exceeds a threshold (high/low)
when a leak is detected

THIS SENSOR IS AVAILABLE IN GAS METER READY VERSIONS

FEATURES OF THE BINDER CONNECTOR SENSOR

Description

What are the technical characteristics of the connected sensor?

Features

Periodic modes with or without log
Data redundancy
Timestamp
Network test at startup
Personalisation of the joint phase
Configurable lifeframe
Alert concerning product, configuration error, low battery

BINDER CONNECTOR

IP67
Female-angled connector
DIN 6 pins
UL certification
Inductance of the cable < 0,004 milliH (mH)
Cable capacity < 0,00012 microF (uF)

PULSE ATEX Specifications

ATEX II 2 G D
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
-20°C < Tamb < +40°C
Uo ≤ 3.9V; Io ≤ 6.1mA; Po ≤ 6mW; Co ≤ 440µF; Lo ≤ 930mH
Ui ≤ 15V; Ii ≤ 1000mA; Pi ≤ 3750mW; Ci = 0µF; Li = 126nH

General specifications

Dimensions: 105 x 50 x 27 mm
Weight: 70 g
Casing: IP67 (IP68 on request)
Integrated fastening system: DIN rail, tube, wall mount, flange
Operating temperature range: -20°C to + 40°C
Soldered battery

Standards: Directive 2014/53/EU (RED)

Decoding

Datasheet

Datasheet_Binder_Pulse_Atex_en

In what area does the IoT sensor operate?

LoRaWAN EU863-870

What are the part numbers of the sensor?

ARF8230FA-B01 PULSE ATEX + BINDER LoRaWAN® EU863-870

Certifications:

Directive 2014/53/UE (RED)

What is the expected autonomy of the connected sensor?

Under the following conditions: 1 index per hour and 1 transmission every 4 hours (6 frames/day), 10,000 pulses and Pull-Up activated:

LoRaWAN EU863-870:

SF7 > 10 years
SF12: 9.3 years

To go further, all documents and tools related to the PULSE ATEX IoT sensor

User Guide PULSE ATEX Sigfox RC1

Release Note – PULSE ATEX APP FW 2.1.2

Technical Reference Manual PULSE ATEX

Installation Guide LoRaWAN / Sigfox IP67-IP68

Quick Start Guide Binder Connector

Questions about using the PULSE ATEX? Consult our dedicated FAQ

Previous versions: to find all the documentation related to previous versions of this product, click here.
