FTD: network tester

FTD: network tester

LoRaWAN / Sigfox

Qualify and validate your network

The Field Test Device allows you to qualify and validate the IoT network in a geographical area.

Available in LoRaWAN and Sigfox versions, over several regions of the world, it is the essential tool to ensure the success of your IoT projects.

Whether at the beginning of your project, to evaluate the available network, or during deployment, to define the best location for your sensors, it it supports you in your decision making.

Highlights of the IoT sensor

Immediate viewing of network coverage data (radio power and received signal strength)
Geolocation of measurement points
Reference product highly praised by public network operators
Available versions:
- LoRaWAN: EU863-870 / US902-928 / AS923-1
- Sigfox: RC1 / RC4

SERVICES RELATED TO THE PRODUCT

RADIO-MAPPING & FIELD TEST DEVICE

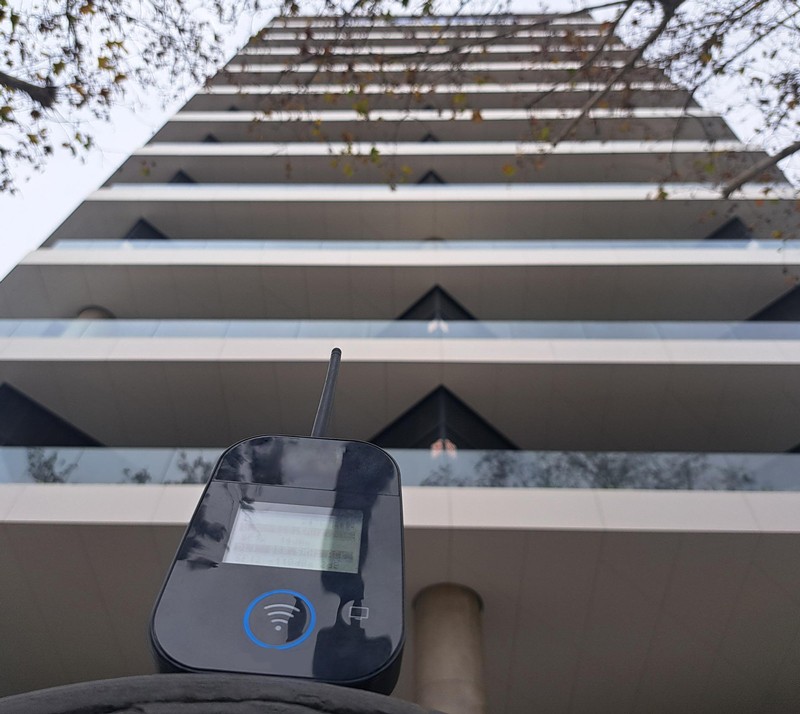

Why carry out a radio-mapping study?

Radio mapping is an essential stage in any IoT project. It guarantees the success of the project in the field.

This network survey, carried out using the Field Test Device, enables you to analyse the LoRaWAN or Sigfox network coverage at the location where your IoT sensors are to be deployed.

So you can avoid setbacks when deploying the sensors on-site or afterward.

FTD can also be used during deployment to validate the presence of the network at the exact location of your sensors.

Description

What are the technical characteristics of the connected sensor?

Features

Data displayed: UL / DL – Channels – RSSI/SNR/PER – Temperature
Self-powered and rechargeable
Dimensions: 180 x 72 x 21 mm
Operating temperature range: -20° C to +40° C
Radiated RF power: 23 dBm
Sensitivity:
- -126dBm Sigfox
- -140dBm LoRaWAN®

Datasheet

Where does the sensor operate?

LoRaWAN EU863-870
Sigfox RC1

What is the sensor part number?

ARF8123AA FIELD TEST DEVICE LoRaWAN® EU863-870
ARF8121AA FIELD TEST DEVICE Sigfox RC1

Certifications:

Directive 2014/53/UE (RED)

For further information, all the useful documents and tools relating to the FTD:

User Guide FTD ARF8123AA LoRaWAN EU863-870

User Guide FTD ARF8121AA Sigfox RC1

Quick Start Guide FTD LoRAWAN EU863-870

Release Note FTD LoRaWAN EU868 APP FW02.00.00

Release Note FTD LoRaWAN EU868 APP FW02.00.01

Release Note FTD SIGFOX RC1 APP01.00.03

Questions about the use of FTD? Check out our dedicated FAQ.

Previous versions: to find all the documentation related to previous versions of this product, click here.

Where does the sensor operate?

LoRaWAN US902-928

What is the sensor part number?

ARF8124A FIELD TEST DEVICE LoRaWAN® US 902-928

Certifications:

US: FCC- Title 47 CFR Part 15
Canada: RSS-247 Issue 2

For further information, all the useful documents and tools relating to the FTD:

User Guide FTD ARF8124A LoRaWAN US902-928

Where does the sensor operate?

LoRaWAN AS923-1

What is the sensor part number?

ARF8124C FIELD TEST DEVICE LoRaWAN® AS923

Certification:

AS/NZS 4268

For further information, all the useful documents and tools relating to the FTD:

User Guide FTD ARF8124C LoRaWAN AS923

Where does the sensor operate?

Sigfox RC4

What is the sensor part number?

ARF8122B FIELD TEST DEVICE Sigfox RC4

Certifications:

AS/NZS 4268

For further information, all the useful documents and tools relating to the FTD:

User Guide FTD ARF8122B Sigfox RC4
