Pulse ATEX: impulse interface

ATEX zone

Gas & vapour:
- Zone 1: immediate proximity to the sensitive area
- Group IIC: hydrogen gases and vapours, acetylene, etc.
Dust:
- Zone 21: immediate proximity to the sensitive area

Pulse ATEX: impulse interface

Make your meters communicate in ATEX ZONE

The PULSE ATEX sensor can be used to read and analyse your gas meters’ consumption data to help you save energy.

It can also be used to count the number of cycles of a piece of equipment so you can plan its maintenance.

This wireless sensor is designed for easy connection to gas meters, or any other equipment with a pulse output, requiring increased protection against the risk of explosion.

Highlights OF THE IOT SENSOR

Up to 2 connectable meters
Tamper and leak detection
Flow rate monitoring
Local and remote configuration
Data logging for optimal autonomy
Redundancy for better service continuity
Timestamp (LoRaWAN®)
Network test at startup (LoRaWAN®)
Available versions:
- with a Binder connector
- with a Gazpar connector
Exist in non ATEX version

SERVICES RELATED TO THE PRODUCT

CHARACTERISTICS OF THE IOT PULSE ATEX SENSOR

What does the connected sensor do?

monitor

Periodically check gas meter readings:
- index transmission,
- flow monitoring (min/max)

Alerte

AND/OR Trigger an alarm when:

when the flow rate exceeds a threshold (high/low)
when a leak is detected

THIS SENSOR IS AVAILABLE IN GAS METER READY VERSIONS

FEATURES OF THE PULSE ATEX IOT SENSOR

Description

What are the technical characteristics of the connected sensor?

Features

Periodic modes with or without log
Data redundancy
Timestamp
Network test at startup
Personalisation of the joint phase
Configurable lifeframe
Alert concerning product, configuration error, low battery

ATEX Specifications

ATEX II 2 G D
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
-20°C < Tamb < +40°C
Uo ≤ 3.9V; Io ≤ 6.1mA; Po ≤ 6mW; Co ≤ 440µF; Lo ≤ 930mH
Ui ≤ 15V; Ii ≤ 1000mA; Pi ≤ 3750mW; Ci = 0µF; Li = 126nH

General specifications

Dimensions: 105 x 50 x 27 mm
Weight: 70 g
Casing: IP67 (IP68 on request)
Integrated fastening system: DIN rail, tube, wall mount, flange
Operating temperature range: -20°C to + 40°C
Soldered battery

Standards: Directive 2014/53/EU (RED)

Decoding

Datasheet

In what area does the IoT sensor operate?

LoRaWAN EU863-870

What are the part numbers of the sensor?

ARF8230FA PULSE ATEX LoRaWAN® EU863-870
ARF8230FA-B01 PULSE ATEX + BINDER LoRaWAN® EU863-870
ARF8230FA-B02 PULSE ATEX + GAZPAR LoRaWAN® EU863-870

Certifications:

Directive 2014/53/UE (RED)

What is the expected autonomy of the connected sensor?

Under the following conditions: 1 index per hour and 1 transmission every 4 hours (6 frames/day), 10,000 pulses and Pull-Up activated:

LoRaWAN EU863-870:

SF7 > 10 years
SF12: 9.3 years

To go further, all documents and tools related to the PULSE ATEX IoT sensor

User Guide PULSE ATEX LoRaWAN EU863-870

Technical Reference Manual PULSE ATEX

Installation Guide LoRaWAN / Sigfox IP67-IP68

Questions about using the PULSE ATEX? Consult our dedicated FAQ

Previous versions: to find all the documentation related to previous versions of this product, click here.

In what area does the IoT sensor operate?

Sigfox RC1

What is the sensor reference?

ARF8230GA PULSE ATEX Sigfox RC1
ARF8230GA-B01 PULSE ATEX + BINDER Sigfox RC1
ARF8230GA-B02 PULSE ATEX + GAZPAR Sigfox RC1

Certifications:

Directive 2014/53/UE (RED)

What is the expected autonomy of the connected sensor?

Under the following conditions: 1 index per hour and 1 transmission every 4 hours (6 frames/day), 10,000 pulses and Pull-Up activated:

Sigfox RC1 : 4,7 years

To go further, all documents and tools related to the PULSE ATEX IoT sensor

User Guide PULSE ATEX Sigfox RC1

Release Note – PULSE ATEX APP FW 2.1.2

Technical Reference Manual PULSE ATEX

Installation Guide LoRaWAN / Sigfox IP67-IP68

Questions about using the PULSE ATEX? Consult our dedicated FAQ

Previous versions: to find all the documentation related to previous versions of this product, click here.

Our solutions for different uses

Discover our case studies for optimising the use of your buildings while improving the organisation of your services.

Reduce
energy consumption

Meet
regulatory requirements

Guarantee
satisfaction of occupants

Protect
the building against damage

bureaux-batiment-smart-building-connecte-energie-iot

Why digitise office buildings with IoT solutions

Do you want to digitise your office buildings and make them more economical, comfortable and attractive? Discover our IoT solutions…

bâtiment, logement collectif, smart building, iot, connecté, digitalisé, lpwan, iot

Controlling energy consumption in social housing

Find out how FDI Habitat, a social housing operator, is using the IoT to reduce energy consumption in its homes.

gare et connexion ; gare connectee ; iot ; sncf ; engie

Smart Station: making stations connected, more modern and more efficient

The “Smart Station” project aims to make stations connected, with the help of IoT, by creating centralized supervision of equipment…

iot, compteur, eau, water metering, australia

Water meter monitoring with IoT solutions in Australia

Adeunis IOT solutions deployed in Australia dedicated to sustainable water consumption with Elecom Electronics Supply.

Energy sub-metering and IoT: how to better control your consumption

Energy sub-metering and IoT allow you to control your consumption in order to reduce your costs and improve energy performance….

Our product selection

To cover all your needs

Current sensor: current measurement

Current Sensor : Capteur transmetteur IoT releve de niveau de courant sur compteurs electriques

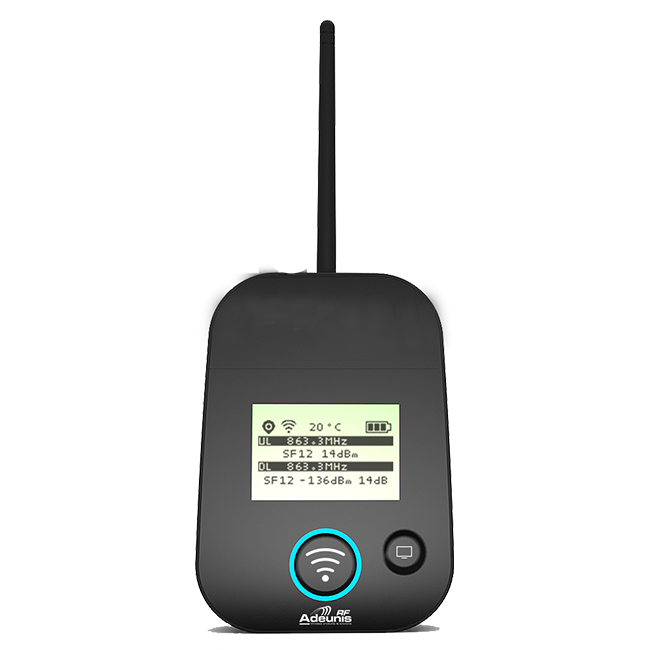

FTD: network tester

network-lorawan-sigfox-field-test-device-ftd

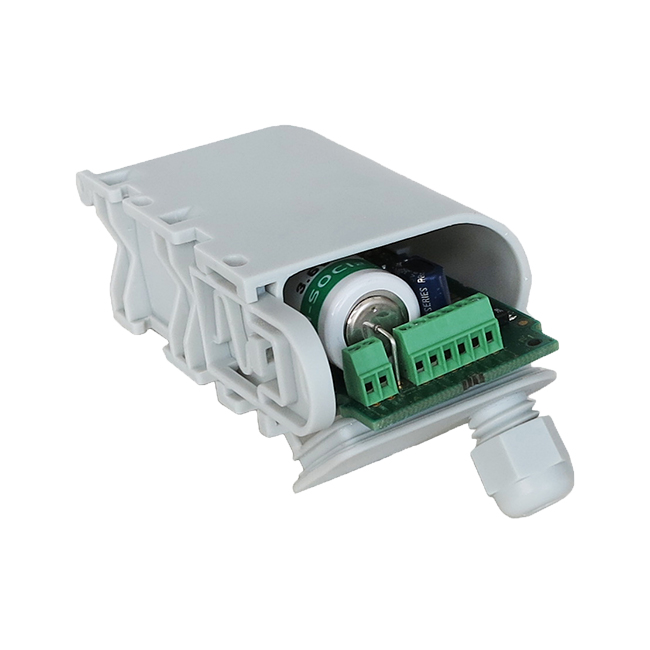

MODBUS: “interface for Modbus slaves”
