WATER LEAK CABLE: fluid detection

WATER LEAK CABLE: fluid detection

LoRaWAN / Sigfox sensor

Detect a water leak on the ground, around an object or equipment

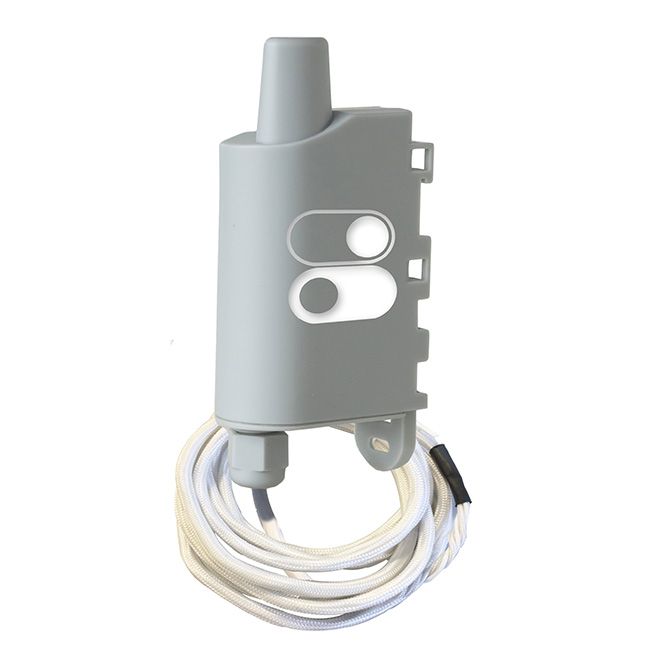

The WATERLEAK CABLE is a ready-to-use product enabling to detect water detection. it is an assembly between a DRY CONTACTS transceiver and a water-leak detection cable.

Default settings have been established to simplify product installation by the user.

Highlights of the IoT sensor

  • 4 configurable inputs/outputs:
    • Control an output based on change in the state of an input
    • Remote and near-real-time control of output – LoRaWAN Class C
    • Track the time spent in a given state
  • Over 15 years of autonomy (depending on version and configuration)
  • Local and remote configuration
  • Data transmission modes: periodic and/or event-trigged
  • Compatible with KARE
  • Available versions:
    • LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1
    • Sigfox: RC1 / RC2 / RC4

FEATURES OF THE WATER LEAK CABLE

What actions are carried out by the connected sensor?

Alerte

Alert on events:

  • Raise an alert if water is present,
  • Warn of return to normal.

MONITOR

  • Count the time spent in a state.
iot sensor ; dry-contacts ; lorawan, lora, lora alliance, lpwan, sensor; iot, connected sensor, wireless sensor, smart building, water leak, flood
Description of the IoT temperature and humidity sensor

In which geographical areas does the sensor work?

LoRaWAN

LoRaWAN EU863
LoRaWAN US902
LoRaWAN AU915
LoRaWAN AS923-1

Sigfox

Sigfox RC1
Sigfox RC2
Sigfox RC4

iot ; capteur ; capteur iot ; lorawan, lora, lora alliance ; lpwan, sigfox ; sensor; iot sensor

What are the technical characteristics of the connected sensor?

Features

  • Four configurable digital inputs/outputs
  • LoRaWAN Class C (with external power supply)
  • Periodic and/or event-based transmission
  • Configurable life cycle
  • Product error, configuration error, and low battery alerts
  • Operating temperature range: -25°C to + 70°C
  • Replaceable battery
  • Integrated fastening system: DIN rail, tube, wall mount, collar
  •  Configuration:
    • Local, via a USB port
    • Remote, via the network, enabling choice of transmission modes, periodicity, and type of interface (input/output)
  • Certifications:
    • Directive 2014/53/UE (RED)
    • US: FCC- Title  47 CFR Part 15
    • Canada: RSS-247 Issue 2
    • AS/NZS 4268

Water leak sensor

  • Cable: 2 meters sensor + 70 centimeters non-sensor (different length on request)

Sensor position:

Around
an element

Présence d'eau ; Détecter une fuite ; Protection de vos équipements ; Adeunis ; Réseau IoT ; Réseau public ; Réseau privé : Sigfox ; LoraWan ; Objenious ; Orange ; M-Bus ; Wireless ; Smart Building ; Smart Industry ; Smart City ; Humidité ; Température ; Electricité ; Surveillance ; Consommation ; Compteurs eau

Along
a wall

Présence d'eau ; Détecter une fuite ; Protection de vos équipements ; Adeunis ; Réseau IoT ; Réseau public ; Réseau privé : Sigfox ; LoraWan ; Objenious ; Orange ; M-Bus ; Wireless ; Smart Building ; Smart Industry ; Smart City ; Humidité ; Température ; Electricité ; Surveillance ; Consommation ; Compteurs eau

Around
a pipe

Présence d'eau ; Détecter une fuite ; Protection de vos équipements ; Adeunis ; Réseau IoT ; Réseau public ; Réseau privé : Sigfox ; LoraWan ; Objenious ; Orange ; M-Bus ; Wireless ; Smart Building ; Smart Industry ; Smart City ; Humidité ; Température ; Electricité ; Surveillance ; Consommation ; Compteurs eau

Decoding

  • lora lora alliance iot
  • Sigfox-Partner-reseaux-iot

What are the part numbers of the sensor?

LoRaWAN

ARF8170BCA-B03 WATER LEAK CABLE LoRaWAN® EU863-870

ARF8170BRA-B03 WATER LEAK CABLE LoRaWAN® US902-928

ARF8170IRA-B03 WATER LEAK CABLE LoRaWAN® AU915-928

ARF8170JRA-B03 WATER LEAK CABLE LoRaWAN® AS923

Sigfox

ARF8171BA-B03 WATER LEAK CABLE Sigfox RC1

ARF8170DRA-B03 WATER LEAK CABLE Sigfox RC2

ARF8170KRA-B03 WATER LEAK CABLE Sigfox RC4

To go further, all documents and tools related to the WATER LEAK CABLE:

Technical documentation

Find all the other technical documents on the DRY CONTACTS page

Datasheet

Driver USB to download
