DOUBLE LEVEL SENSOR: fluid level

DOUBLE LEVEL SENSOR: fluid level

LoRaWAN / Sigfox sensor

Monitor the evolution of a fluid level

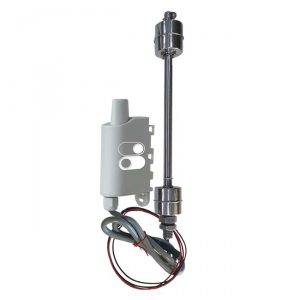

The Double-level-sensor is a ready-to-use product enabling the detection of a double level of liquid.

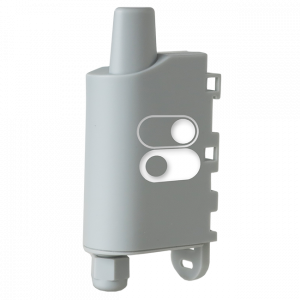

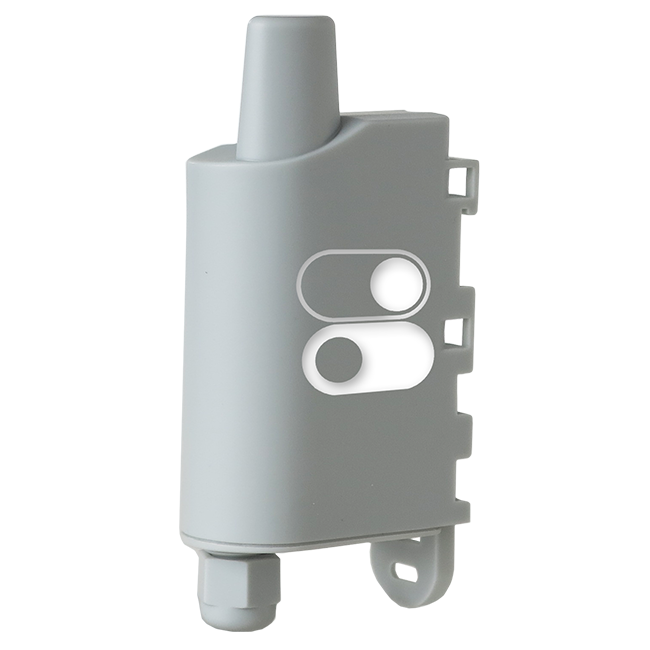

The package is composed of a DRY CONTACTS transceiver and a double-level sensor. Default settings have been established to simplify product installation by the user.

Highlights of the IoT sensor

4 configurable inputs/outputs:
- Control an output based on change in the state of an input
- Remote and near-real-time control of output – LoRaWAN Class C
- Track the time spent in a given state
Over 15 years of autonomy (depending on version and configuration)
Local and remote configuration
Data transmission modes: periodic and/or event-trigged
Compatible with KARE
Available versions:
- LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1
- Sigfox: RC1 / RC2 / RC4

SERVICES RELATED TO THE PRODUCT

FEATURES OF THE DOUBLE LEVEL SENSOR

What actions are carried out by the connected sensor?

Alert

Alert on events:

warn when the level rises
or down,
anticipating an overflow,
prevent the end of the tank.

MONITOR

Count the number of status changes

Evaluate the time spent in a given state

Description of the IoT DOUBLE LEVEL SENSOR

In which geographical areas does the IoT sensor work?

LoRaWAN

LoRaWAN EU863
LoRaWAN US902
LoRaWAN AU915
LoRaWAN AS923-1

Sigfox

Sigfox RC1
Sigfox RC2
Sigfox RC4

What are the technical characteristics of the connected sensor?

Features

Four configurable digital inputs/outputs
LoRaWAN Class C (with external power supply)
Periodic and/or event-based transmission
Configurable life cycle
Product error, configuration error, and low battery alerts
Operating temperature range: -25°C to + 70°C
Replaceable battery

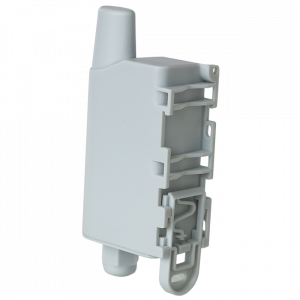

Integrated fastening system: DIN rail, tube, wall mount, collar
Configuration:
- Local, via a USB port
- Remote, via the network, enabling choice of transmission modes, periodicity, and type of interface (input/output)
Certifications:
- Directive 2014/53/UE (RED)
- US: FCC- Title 47 CFR Part 15
- Canada: RSS-247 Issue 2
- AS/NZS 4268

Double level sensor

Operating temperature range: up to 120°C
Dimensions: 215 mm total / 200 mm body float
Casing: stainless steel 304
About 1 m of cable
Operating pressure: 1MPa
Maximal pressure: 5MPa

Decoding

Sensor position

In a tank

In an evacuation nozzle

What are the part numbers of the sensor?

LoRaWAN

ARF8170BCA-B02 DOUBLE LEVEL SENSOR LoRaWAN® EU863-870

ARF8170BRA-B02 DOUBLE LEVEL SENSOR LoRaWAN® US902-928

ARF8170IRA-B02 DOUBLE LEVEL SENSOR LoRaWAN® AU915-928

ARF8170JRA-B02 DOUBLE LEVEL SENSOR LoRaWAN® AS923

Sigfox

ARF8171BA-B02 DOUBLE LEVEL SENSOR Sigfox RC1

ARF8170DRA-B02 DOUBLE LEVEL SENSOR Sigfox RC2

ARF8170KRA-B02 DOUBLE LEVEL SENSOR Sigfox RC4

To go further, all documents and tools related to the DOUBLE LEVEL SENSOR:

Technical documentation

Quick Start Guide Double Level Sensor

Find all the other technical documents on the DRY CONTACTS page

Datasheet

Driver USB to download
