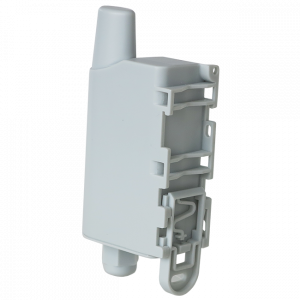

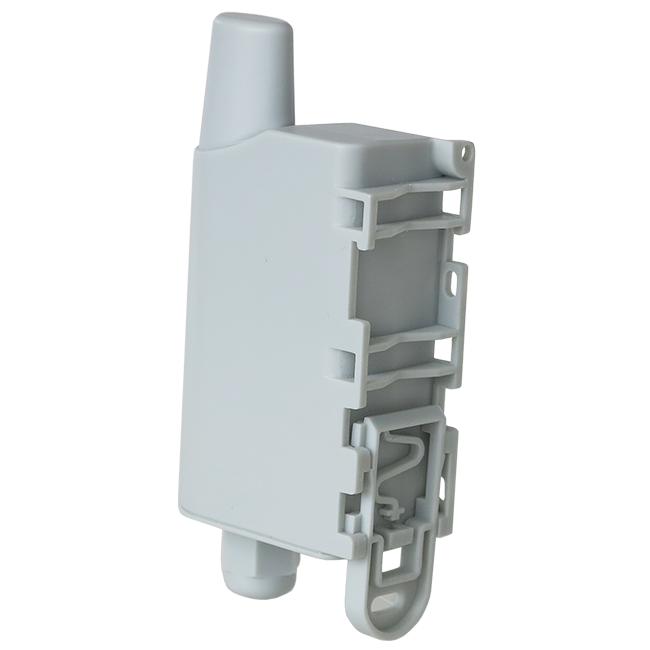

PULSE: impulse interface

PULSE: impulse interface

LoRaWAN / Sigfox sensor

Turn all your meters and pulse output into smart equipment

This sensor enables you to read and analyse consumption data from your water or electricity meters to help you save energy.

It can also be used to count the number of cycles of a piece of equipment, so you can plan its maintenance.

This wireless sensor is designed for easy connection to electricity, water or heat meters, or any other equipment with a pulse output.

Highlights of the IoT sensor

2 configurable pulse inputs for communicating any meter or equipment with a pulse output (dry contact, REED, S0 relay or open collector)
Over 15 years of autonomy (according to version and configuration)
Detection of fraud and leaks
Flow monitoring for a meter
Data transmission modes: periodic and/or event-trigged
Data logging for optimal autonomy
Local and remote configurable of the IoT sensor
Compatible with KARE+
Available versions:
- LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1
- Sigfox: RC1 / RC2 / RC4
- NB-IoT-LTE-M
- 6-wire version
- ATEX version
  - with Binder or Gazpar conector (ATEX version)
- NB-IoT / LTE-M

SERVICES RELATED TO THE PRODUCT

FEATURES OF THE PULSE IoT SENSOR

What actions are carried out by the connected sensor?

Alert

And/or trigger an alarm when:

a fraud is detected
the flow rate exceeds a threshold (high/low)
a leak is detected.

MONITOR

Periodically report water, electricity and heat meter readings:

index transmission
flow monitoring (min/max)

Count the number of cycles of a piece of equipment and anticipate its maintenance.

Description of the IoT temperature connected sensor

What are the technical characteristics of the connected sensor?

Features

Two connectable 3-wire meters or 1 connectable 5-wire meter
Periodic transmission of meter index values or equipment cycles (with or without logging of measured values) and/or when flow rate thresholds are exceeded (high/low) and/or when a leak is detected.
Redundancy with configurable number of data repeats per frame
1 fraud input to detect one or more status changes on each channel
Local configuration via a USB-C port and remote configuration via the network, including setting of periodicity, transmission modes and alarm thresholds
Product error, configuration error and low battery alerts
Pulse detection test at start-up (LoRaWAN)
Programmable acquisition time (LoRaWAN)
Automatic daily synchronization of internal clock (LoRaWAN)

General specifications

Dimensions: 132 x 62 x 34 mm
Weight: 103 g
Casing: IP68
Integrated fastening system: DIN rail, tube, wall mount, collar
Recommended operating conditions:
- -25°C to + 70°C
- 0 to 85% RH (non-condensing)
Interchangeable battery (4000 mAh capacity)

Decoding

Datasheet

Datasheet_PULSE_ARF8230xRA

Driver USB to download

Where does the sensor operate?

LoRaWAN EU863-870
Sigfox RC1

What is the sensor part number?

ARF8230ARA PULSE LoRaWAN® EU863-870
ARF8230CRA PULSE Sigfox RC1

ARF8230ARA-CBL2 PULSE CBL LoRaWAN® EU863-870 with 6 wires
ARF8230CRA-CBL2 PULSE CBL Sigfox RC1 with 6 wires

Certification:

Directive 2014/53/UE (RED)

What is the expected battery life of the sensor?

1 index/hour and 1 transmission/3 hours, 2 channels activated, 500 pulses detected per channel per day, pull-up disabled:

LoRaWAN EU863-870:

SF7: >15 years
SF10: > 15 years
SF12: >15 years

Sigfox RC1:

7.3 years

For further information, all the useful documents and tools relating to the PULSE IoT sensor:

User Guide PULSE ARF8230ARA LoRaWAN EU863-870

User Guide PULSE ARF8230CRA Sigfox RC1

Technical Reference Manual PULSE

Installation Guide LoRaWAN / Sigfox IP67-IP68

Release Note 2 ARF8230XRA PULSE LoRaWAN® EU863-870

Release Note ARF8230CRA Sigfox RC1

Previous versions: to find all the documentation related to previous versions of this product, click here.

Where does the sensor operate?

LoRaWAN US902-928
Sigfox RC2

What is the sensor part number?

ARF8230BRA PULSE LoRaWAN® US902-928
ARF8230DRA PULSE Sigfox RC2

Certification:

US: FCC- Title 47 CFR Part 15
Canada: RSS-247 Issue 2

What is the expected battery life of the sensor?

1 index/hour and 1 transmission/3 hours, 2 channels activated, 500 pulses detected per channel per day, pull-up disabled:

LoRaWAN US902-928:

SF7: >15 years
SF12: >15 years

Sigfox RC2:

>15 years

For further information, all the useful documents and tools relating to the PULSE IoT sensor:

User Guide PULSE ARF8230BRA LoRaWAN US902-928

User Guide PULSE ARF8230DRA Sigfox RC2

Technical Reference Manual PULSE

Installation Guide LoRaWAN / Sigfox IP67-IP68

Release Note PULSE ARF8230BRA LoRaWAN US902-928

Previous versions: to find all the documentation related to previous versions of this product, click here.

Where does the sensor operate?

LoRaWAN AS923-1

What is the sensor part number?

ARF8230JRA PULSE LoRaWAN® AS923-92

Certification:

AS/NZS 4268

What is the expected battery life of the sensor?

1 index/hour and 1 transmission/3 hours, 2 channels activated, 500 pulses detected per channel per day, pull-up disabled:

LoRaWAN AS923:

SF7: >15 years
SF12: >15 years

For further information, all the useful documents and tools relating to the PULSE IoT sensor:

User Guide PULSE ARF8230JRA LoRaWAN AS923

Technical Reference Manual PULSE

Installation Guide LoRaWAN / Sigfox IP67-IP68

Release Note PULSE ARF8230JRA LoRaWAN AS923

Where does the sensor operate?

LoRaWAN AU915-928
Sigfox RC4

What is the sensor part number?

ARF8230IRA PULSE LoRaWAN® AU915-928
ARF8230KRA PULSE Sigfox RC4

Certification:

AS/NZS 4268

What is the expected battery life of the sensor?

1 index/hour and 1 transmission/3 hours, 2 channels activated, 500 pulses detected per channel per day, pull-up disabled:

LoRaWAN AU915-928:

SF7: >15 years
SF12: >15 years

Sigfox RC4:

>15 years

For further information, all the useful documents and tools relating to the PULSE IoT sensor:

Technical Reference Manual PULSE

Installation Guide LoRaWAN / Sigfox IP67-IP68

User Guide PULSE ARF8230IRA LoRaWAN AU915-928

User Guide PULSE ARF8230KRA Sigfox RC4

Release Note PULSE ARF8230KRA Sigfox RC4
